Product Overview
| Feature Description | Advantage | Benefit |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product | |
 CBN (Cubic Boron Nitride) machine turned | Reduced DTV (Disc thickness variation) and parallelism | Less occurrence of brake shudder or brake pedal |
Ideal for enthusiasts looking for an upgrade over stock rotors.
Premium non-directional cross-drilled and slotted design of DBA brake rotors increases the number of outgassing exit points allowing more brake pad friction gasses to escape through.
Brake rotors from DBA Street Series feature with "Kangaroo Paw” – 144 diamond and tear drop pillar ventilation system. Increased surface area results in greater heat dissipation and thus minimises brake fade and increases braking effectiveness of disc brake. CBN (Cubic Boron Nitride) machine turned reduces DTV (Disc thickness variation) and parallelism which brings less occurrence of brake shudder or brake pedal ‘judder’.

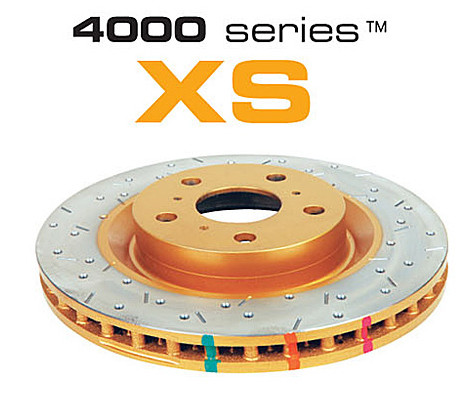

While providing a similar performance benefit to the T3 slot, the 4000 XS Series is a popular alternative for open wheel and show cars. We recommend the T3 slot design for more intensive braking applications.
Vehicle Applications:
LEXUS Aristo 3.0 Twin Turbo (1994-1997) (1994-1997) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
LEXUS GS300 3.0 (1991-1993) (1991-1993) - Front Disc Diameter [mm]: 296
LEXUS GS300 3.0 (1993-1995) (1993-1995) - Front Disc Diameter [mm]: 296
LEXUS GS300 3.0 (1995-1997) (1995-1997) - Front Disc Diameter [mm]: 296
LEXUS GS300 3.0 (1998-2005) (1998-2005) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
LEXUS GS430 4.3 (2000-2005) (2000-2005) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
LEXUS IS200 2.0 153BHP (1999-2005) (1999-2005) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
LEXUS IS300 3.0 230BHP (2001-2005) (2001-2005) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
LEXUS LS400 (XF10) 4.0 (1993-1995) (1993-1995) - Front Disc Diameter [mm]: 296
LEXUS SC400 4.0 (1994-2000) (1994-2000) - Front Disc Diameter [mm]: 296
LEXUS SC430 4.3 (2001-2010) (2001-2010) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
LEXUS Soarer JZZ30 2.5 Turbo (1997-2000) (1997-2000) - Front Disc Diameter [mm]: 296
LEXUS Soarer JZZ30 2.5 Twin Turbo GT-TL (1991-1996) (1991-1996) - Front Disc Diameter [mm]: 296
LEXUS Soarer JZZ31 3.0 (1996-2000) (1996-2000) - Front Disc Diameter [mm]: 296
LEXUS Soarer UZZ32 4.0 (1991-1997) (1991-1997) - Front Disc Diameter [mm]: 296
TOYOTA Altezza SXE10 2.0 (1998-2001) (1998-2001) - Front Disc Diameter [mm]: 296
TOYOTA Altezza SXE10 2.0 (2001-2005) (2001-2005) - Front Disc Diameter [mm]: 296
TOYOTA Aristo JZS147 3.0 Twin Turbo Vertex (1993-1997) (1993-1997) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
TOYOTA Aristo JZS160 3.0 (1997-2000) (1997-2000) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
TOYOTA Aristo JZS161 3.0 Twin Turbo Vertex (1997-2005) (1997-2005) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
TOYOTA Aristo UZS143 4.0 (1992-1997) (1992-1997) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
TOYOTA Soarer JZZ30 2.5 Turbo (1997-2000) (1997-2000) - Front Disc Diameter [mm]: 296
TOYOTA Soarer JZZ30 2.5 Twin Turbo GT-TL (1991-1996) (1991-1996) - Front Disc Diameter [mm]: 296
TOYOTA Soarer JZZ31 3.0 (1996-2000) (1996-2000) - Front Disc Diameter [mm]: 296
TOYOTA Soarer UZZ32 4.0 (1991-1996) (1991-1996) - Front Disc Diameter [mm]: 296
TOYOTA Supra (Not UK) 3.0 Twin Turbo (1993-2002) (1993-2002) - Front Brake Pads: DB1395 Disc Diameter [mm]: 296
